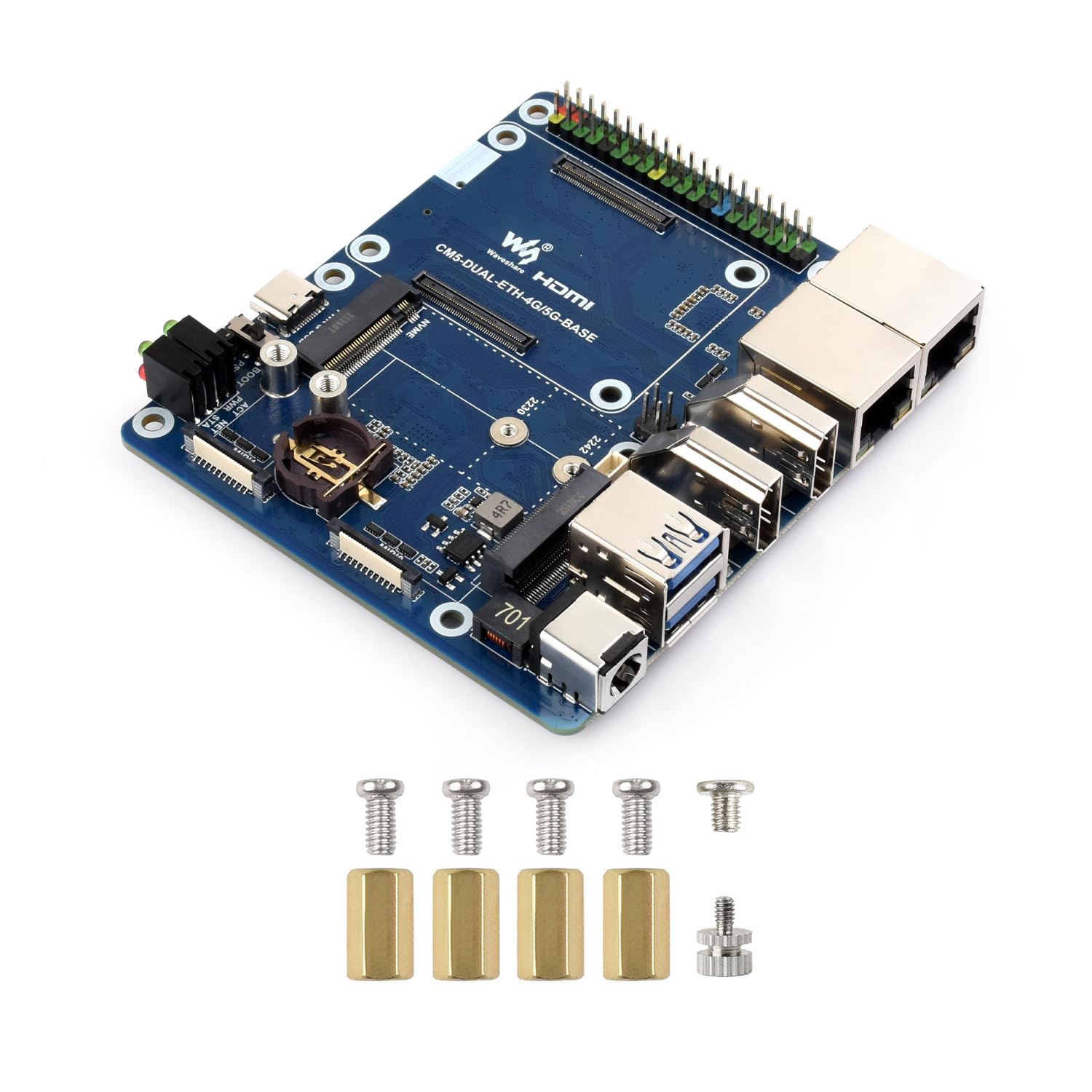

Waveshare Dual Ethernet Base Board, Compatible with Raspberry Pi CM5, Supports 4G/5G, Dual 4K Display Outputs, Dual MIPI Interfaces, 40PIN GPIO Header, Dual USB 3.2 Gen1 Ports, PoE Module Support

Marchio: Waveshare
Dispositivi compatibili: Raspberry Pi CM5
Tecnologia memoria RAM: DDR4
Processori compatibili: Broadcom BCM2711
Tipo di chipset: Broadcom BCM2711
Piattaforma: Linux
Nome modello: Dual Ethernet Base Board
Modello CPU: A10
Tipo di connettore di alimentazione principale: 40-pin
Interfaccia scheda video: PCI Express

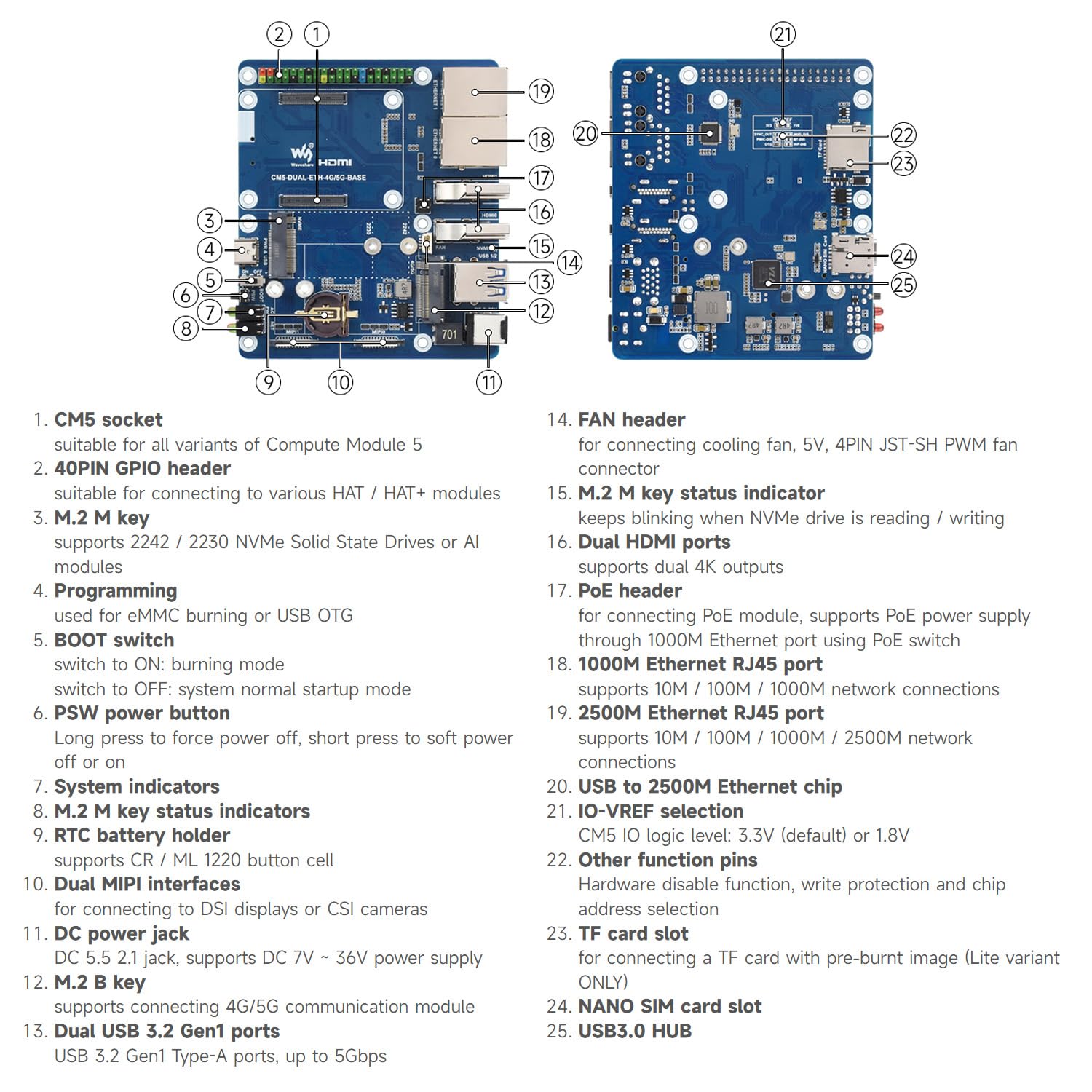

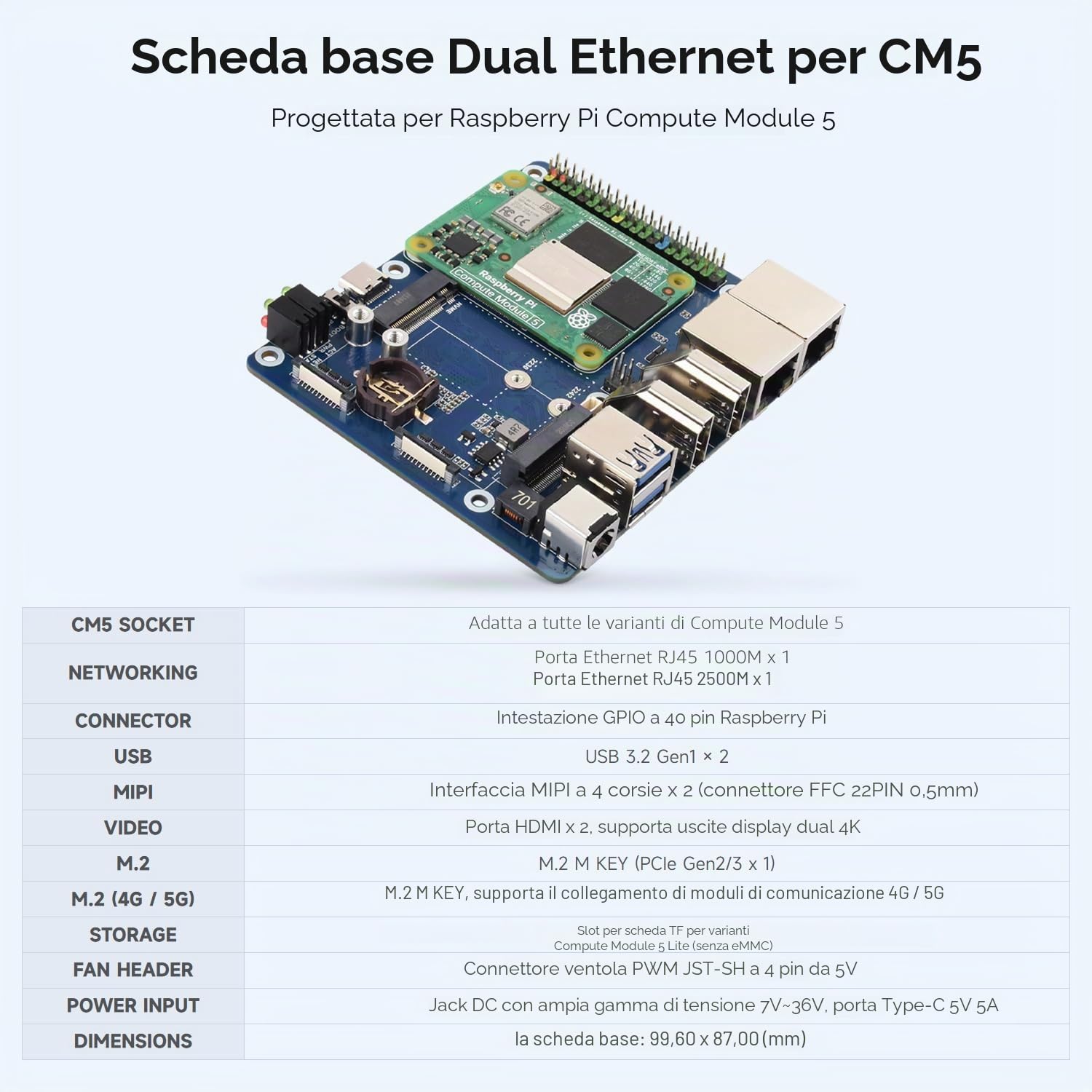

- Compatible with all variants of the Compute Module 5
- Includes 1 × 1000M Ethernet RJ45 port and 1 × 2500M Ethernet RJ45 port

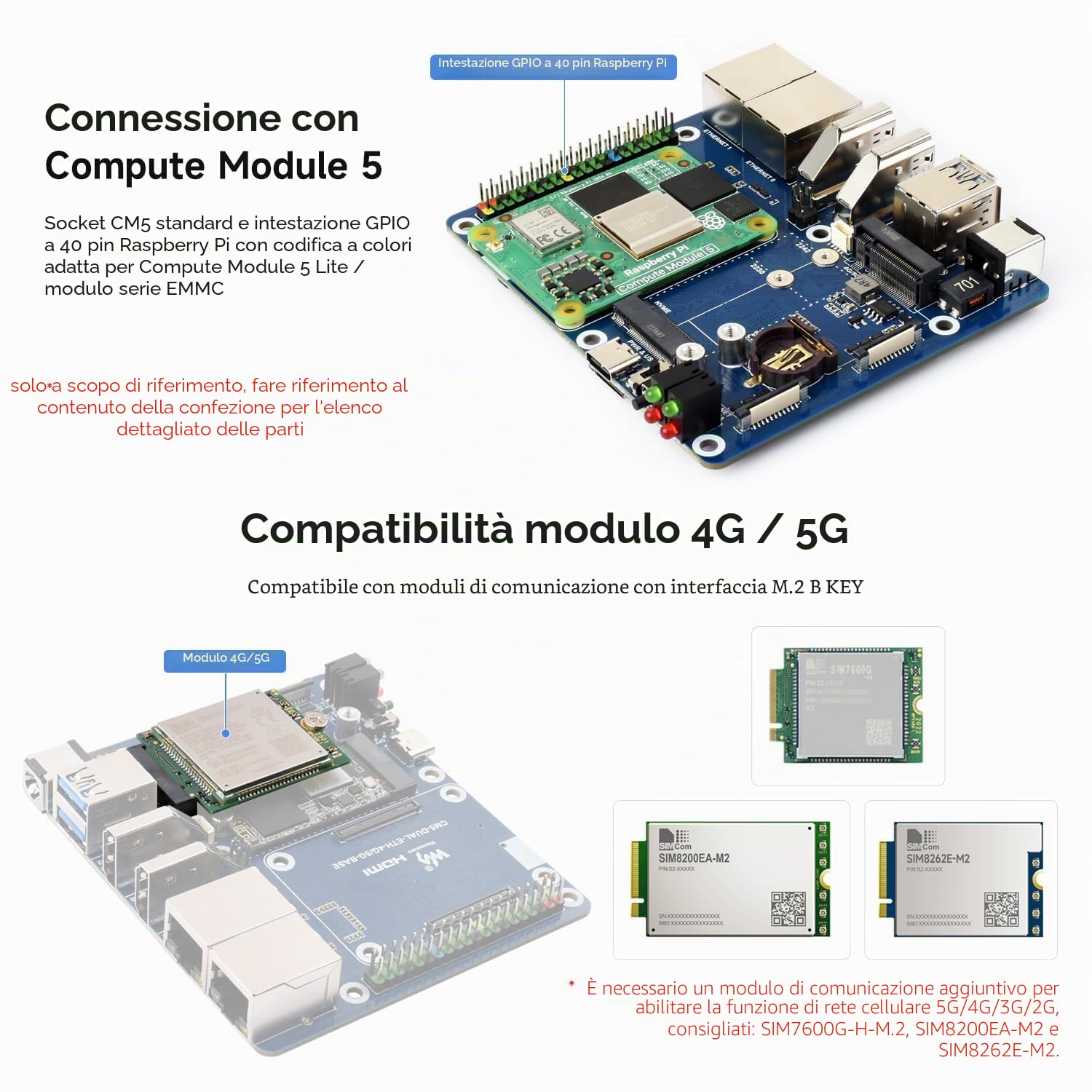

- Features a Raspberry Pi 40-pin GPIO header for flexible peripheral connections
- Equipped with 2 × USB 3.2 Gen1 ports and 2 × 4-lane MIPI interfaces (22-pin 0.5mm FFC connectors)

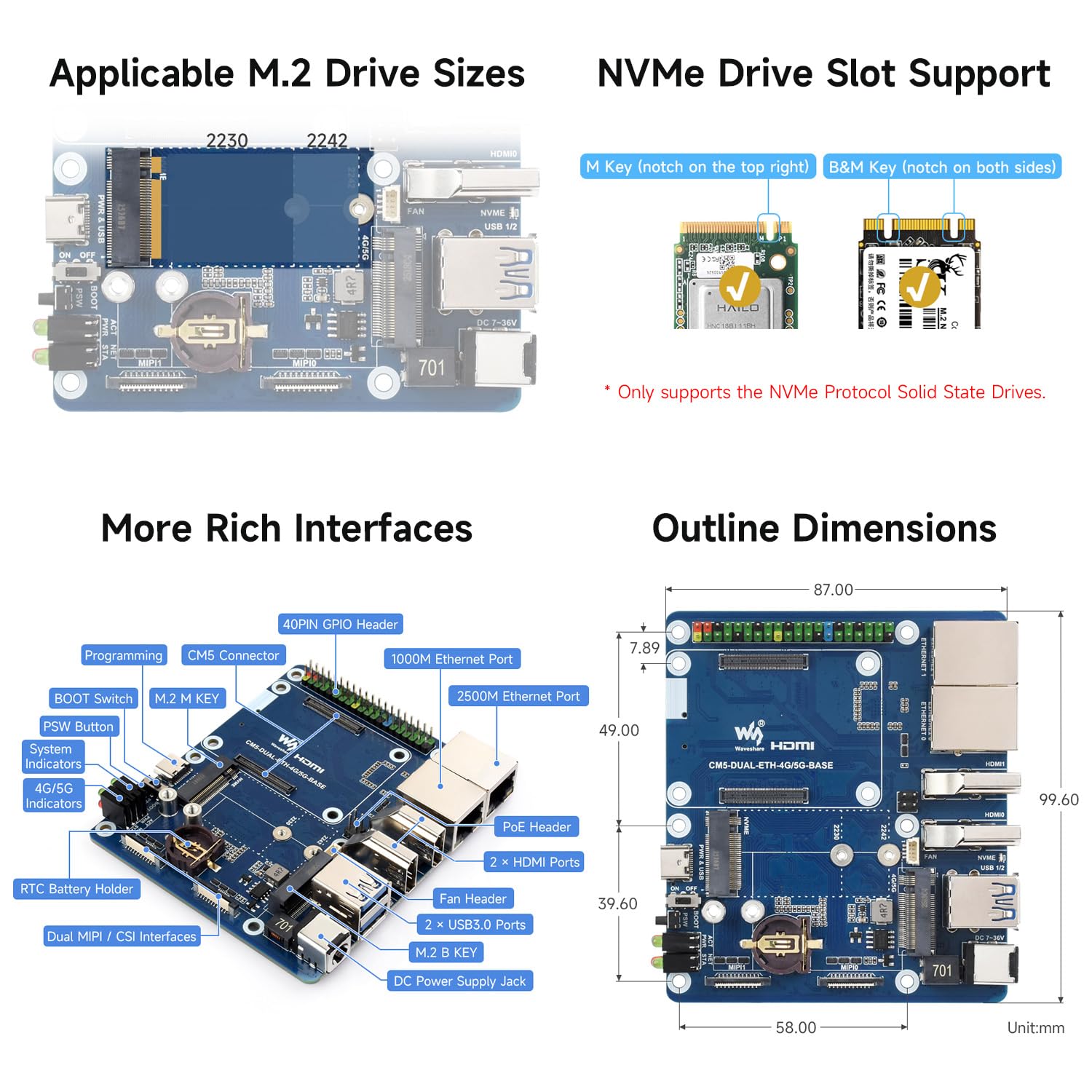

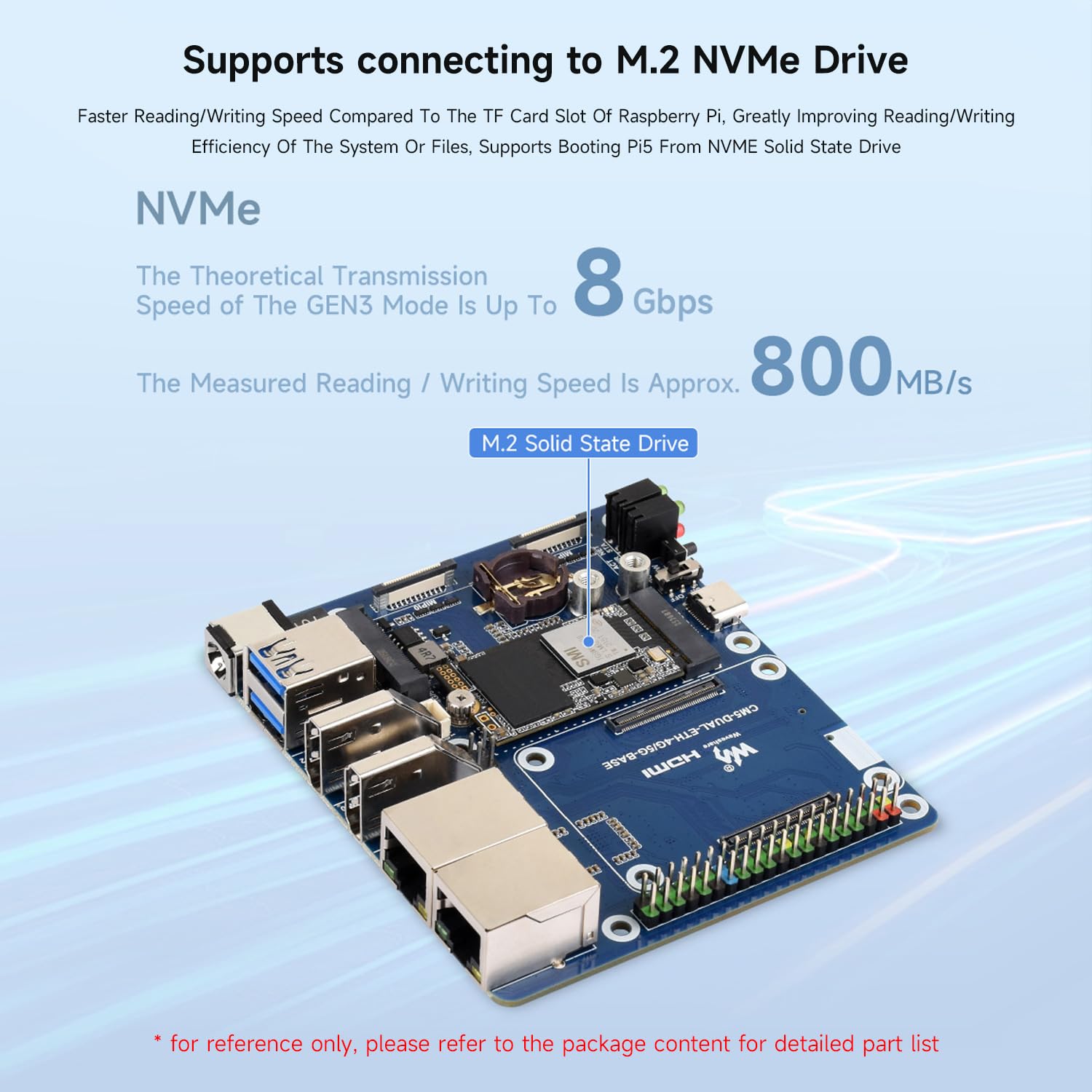

- Dual HDMI ports supporting 4K display outputs, M.2 M Key for PCIe Gen2/3 x1, and TF card socket for Compute Module 5 Lite variants without eMMC
