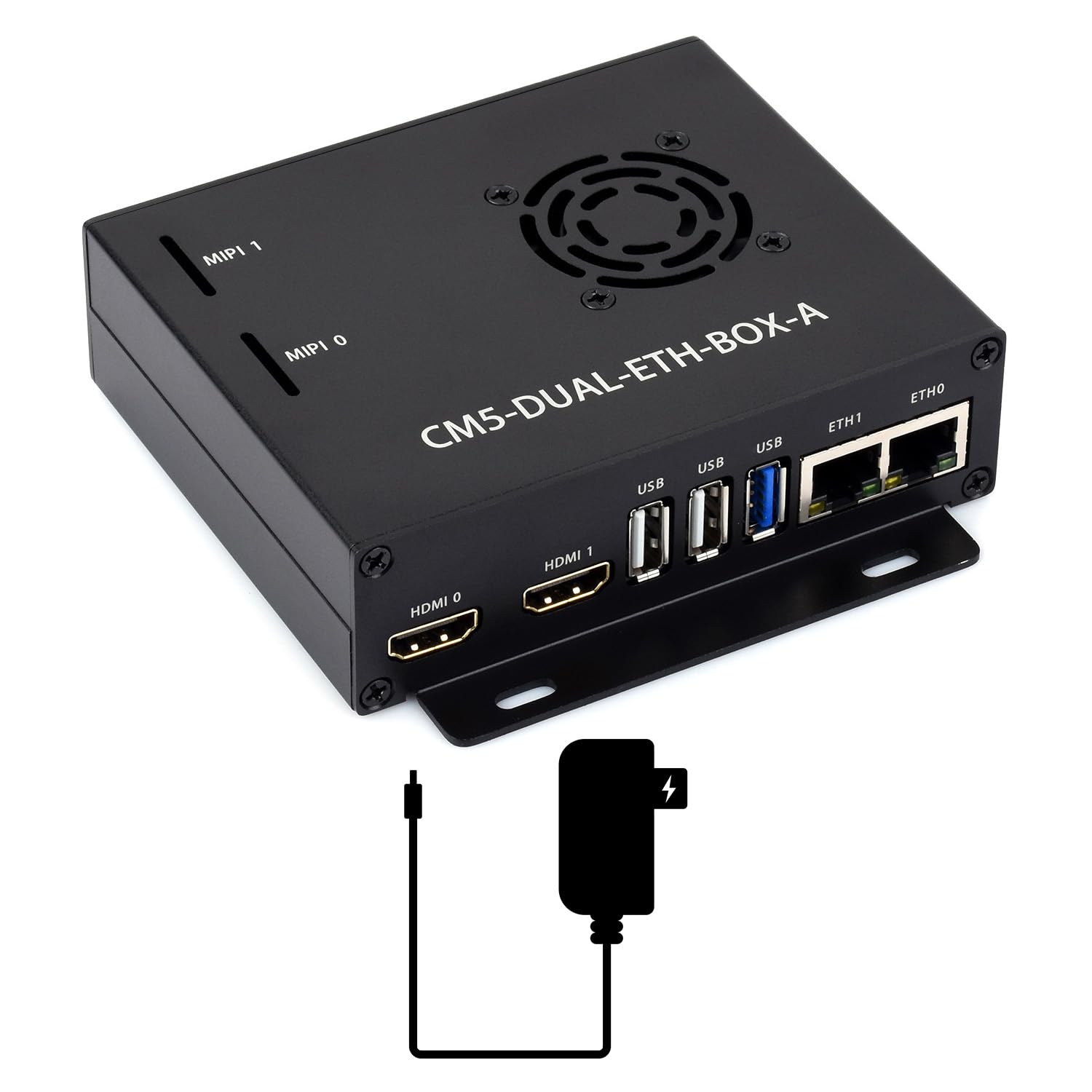

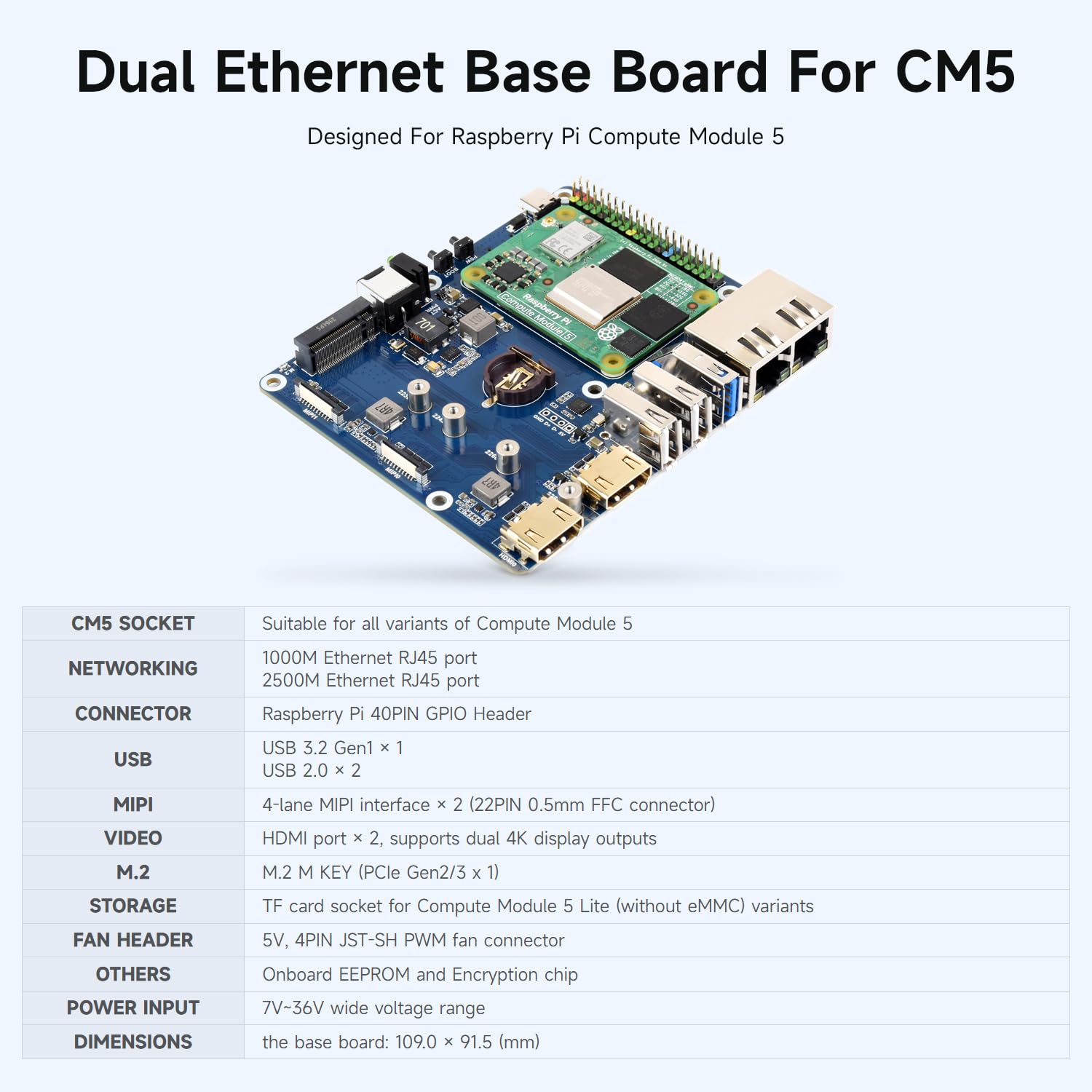

Waveshare Gigabit / 2.5G Dual Ethernet Base Board with Metal Case For Raspberry Pi CM5. Dual RJ45 Ethernet Ports, Supports Dual 4K Display Outputs And Dual MIPI Interfaces, Onboard 40Pin GPIO Header

Marchio: Waveshare
Totale porte USB: 2
Ingresso interfaccia utente: Mouse, Tastiera

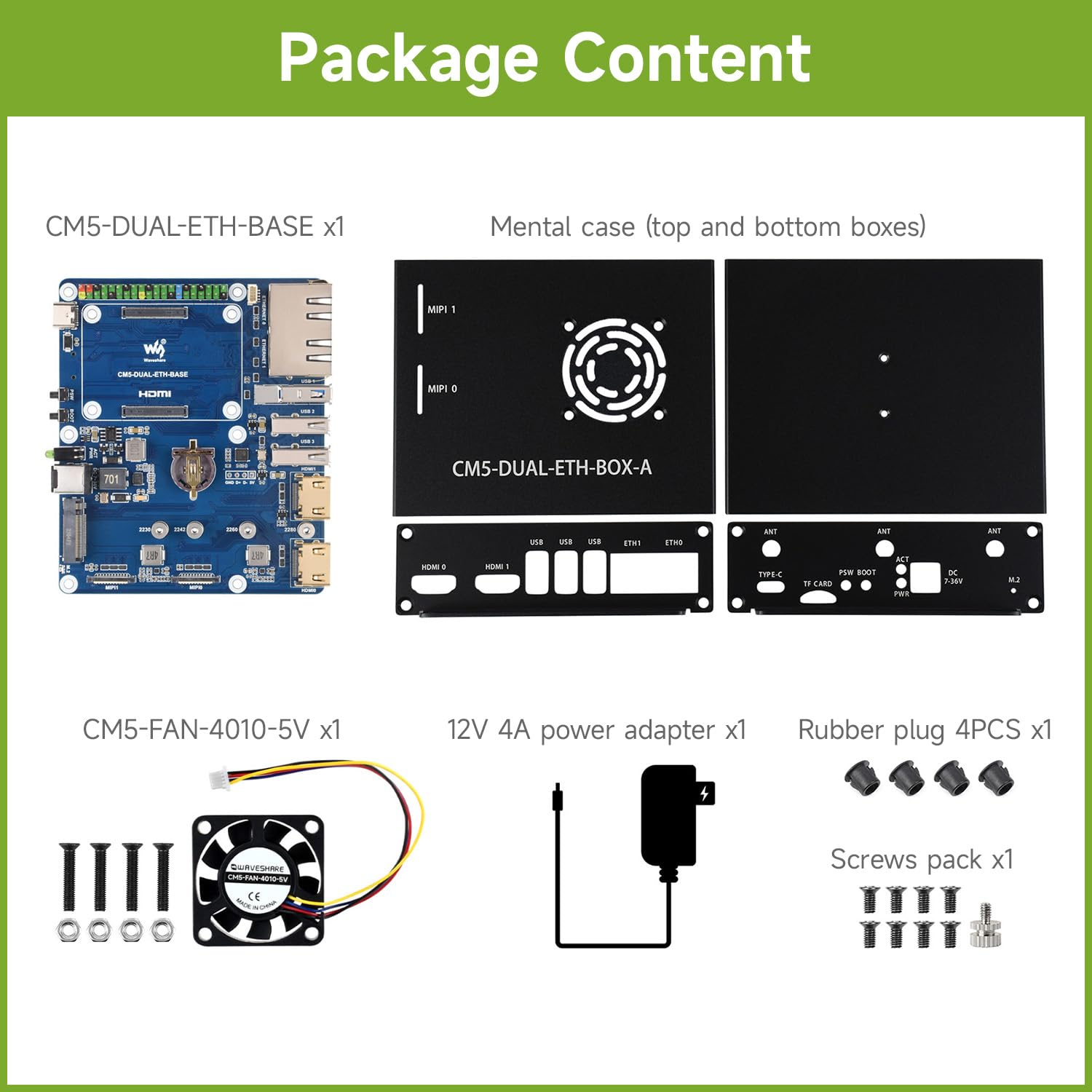

- CM5-DUAL-ETH-BOX-A, including the base board, metal case, cooling fan, etc. Type-C can be used as a USB SLAVE interface to flash images. Onboard default 1 USB 3.2 Gen1 port

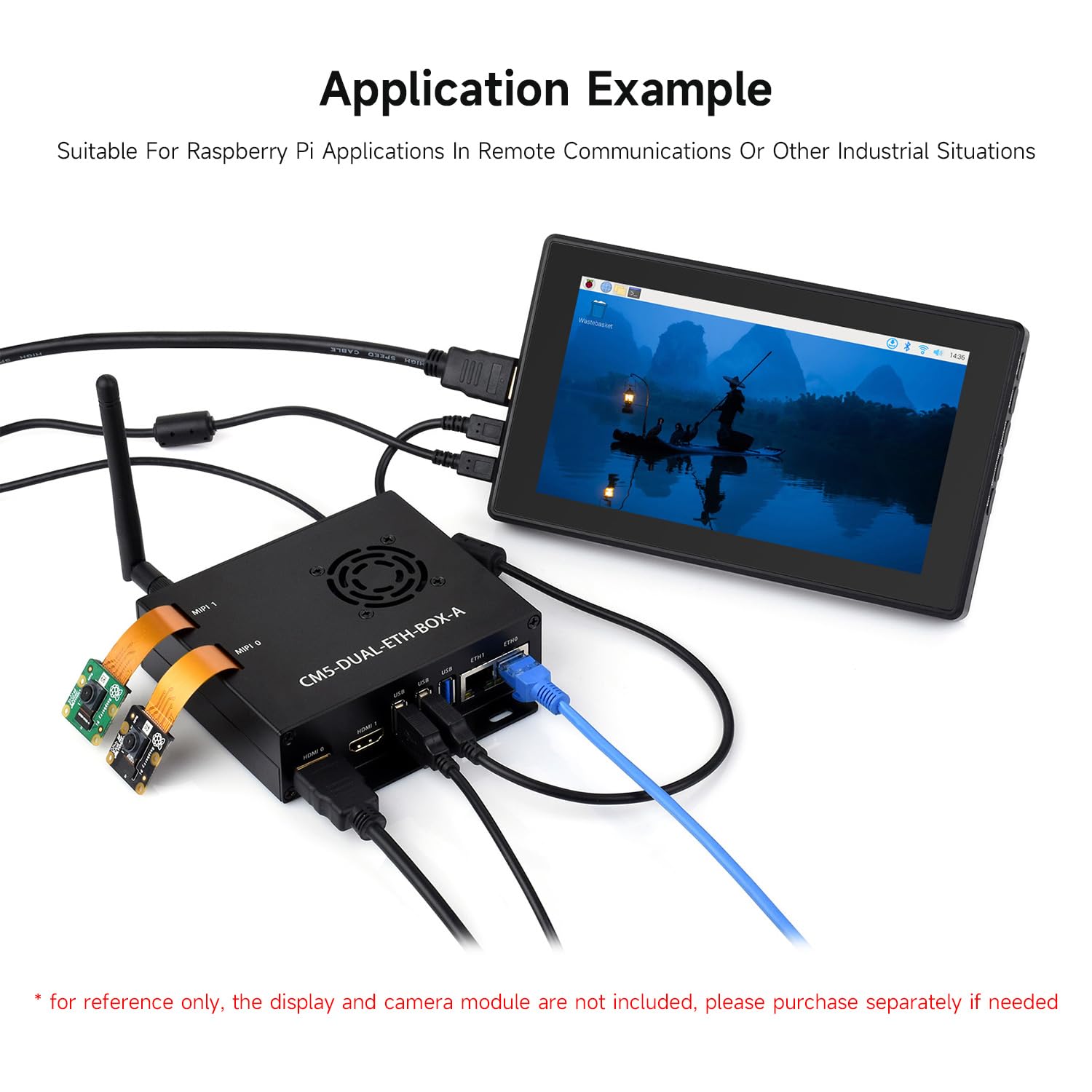

- Supports 4 screens to display different contents, adds MIPI DSI driver, regardless of whether a screen is connected, the system will default to connect, the screen will display in split-screen mode (related to the system version)

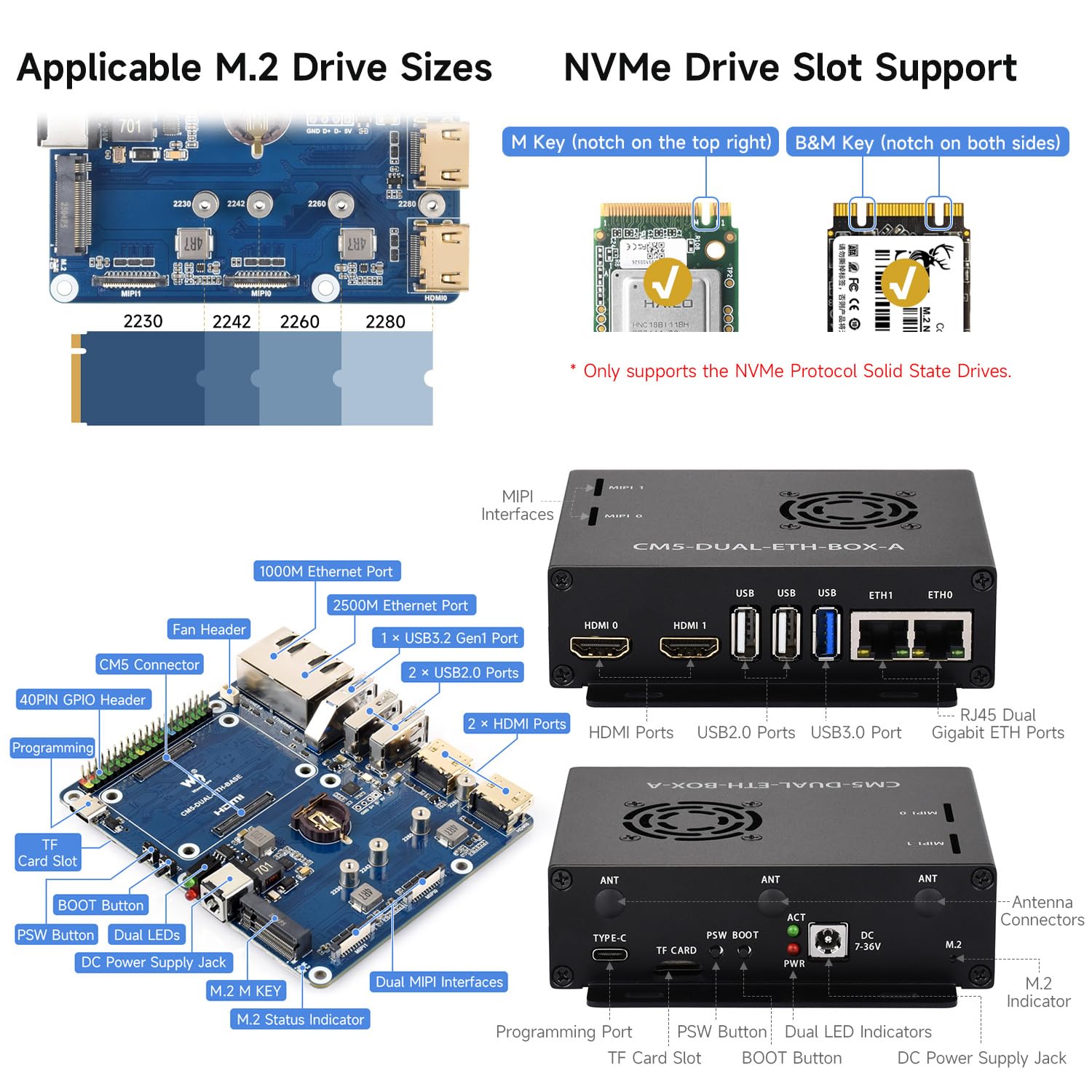

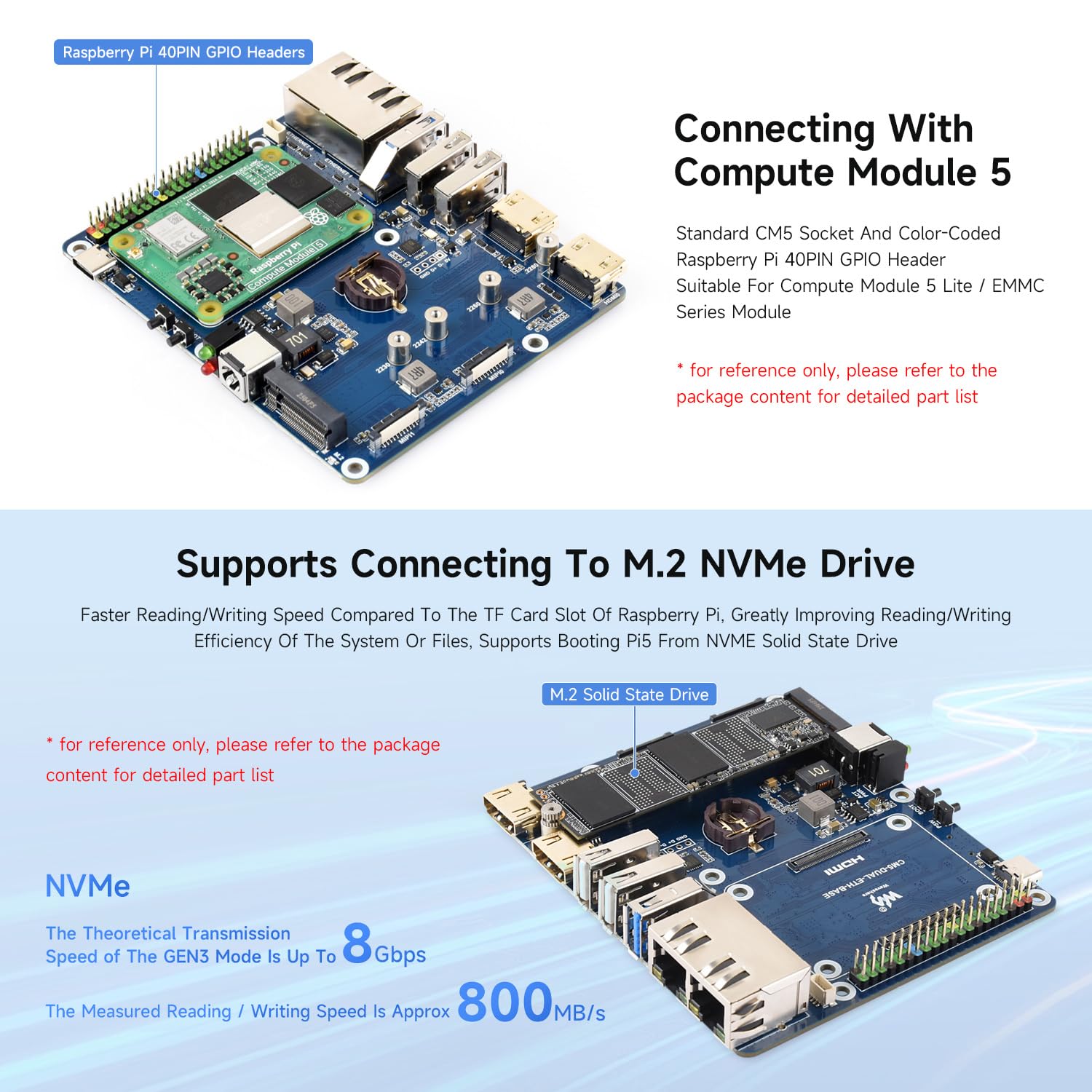

- Onboard M.2 M KEY interface, supports NVMe boot. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type-C to let the device enter the flashing mode
- Do not connect other devices when using Type-C for flashing, otherwise insufficient power supply will cause the device to be unrecognized
- The USB2.0 ports have a total maximum power output of 2A, and the USB3.0 port has a maximum power output of 2A
