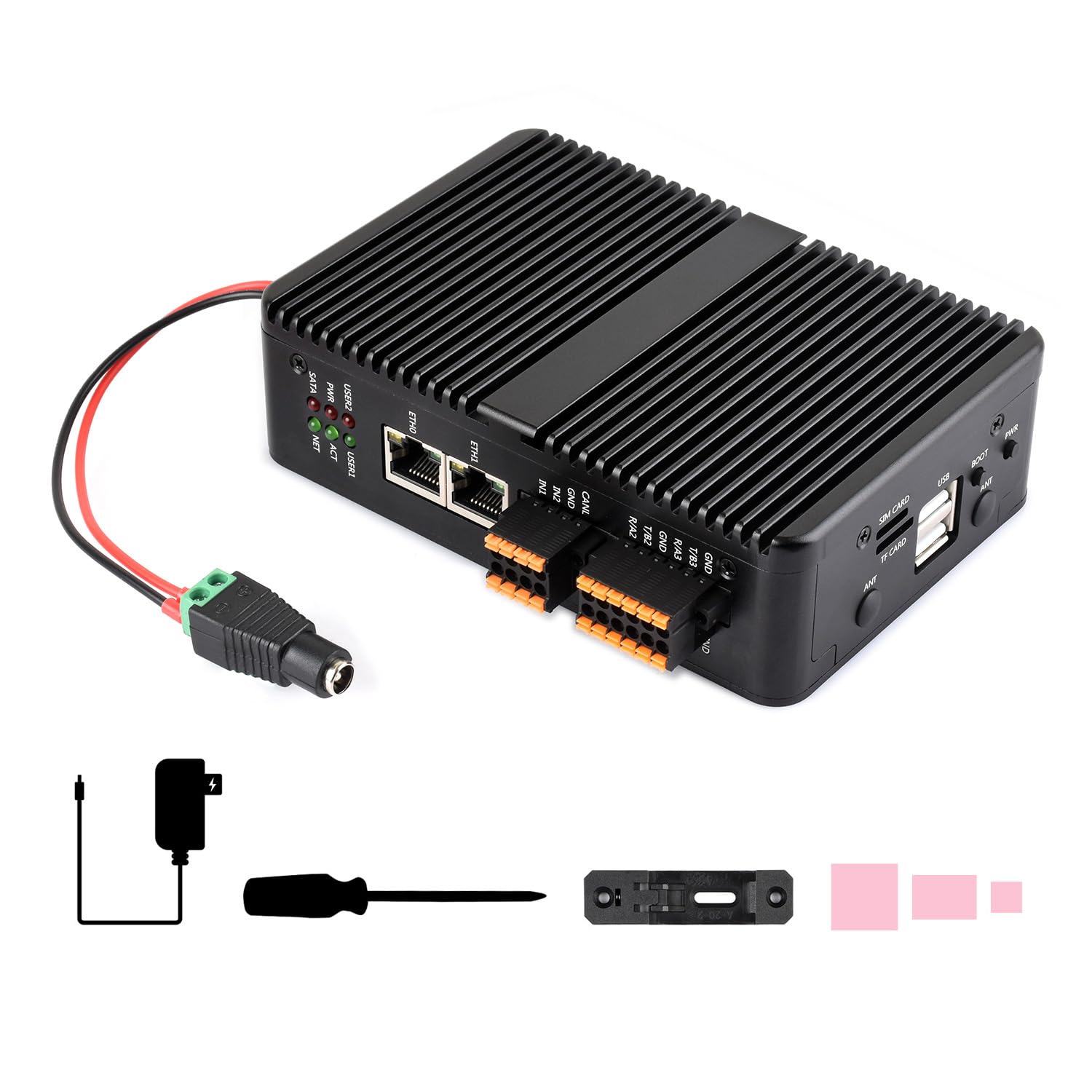

Waveshare IPCBOX-CM5-B(2xRS485 & 2xRS232), Gigabit/2.5G Dual Ethernet Industrial Computer Based On Raspberry Pi CM5(NOT Included), Support 4K Display Output and 4G/5G Module, For All Compute Module 5

Marchio: Waveshare
Socket CPU: Socket CM5
Dispositivi compatibili: Raspberry Pi CM5
Processori compatibili: Broadcom BCM2711A1
Tipo di chipset: Broadcom VideoCore IV GPU e Broadcom BCM2835/BCM2836/BCM2837 SoC
Piattaforma: Linux
Nome modello: IPCBOX-CM5-B
Numero di porte: 6
Totale porte Ethernet: 2
Produttore: Waveshare

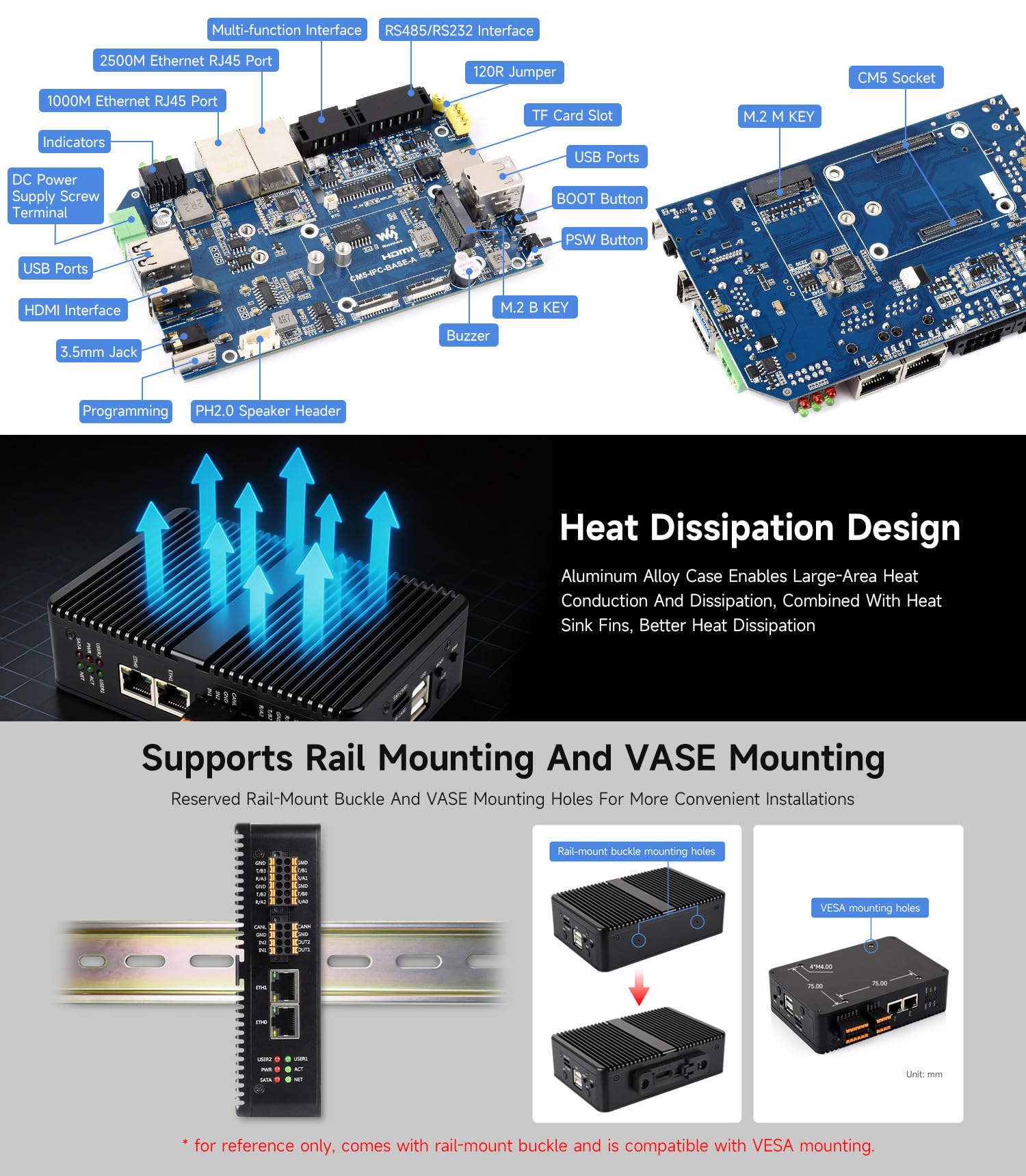

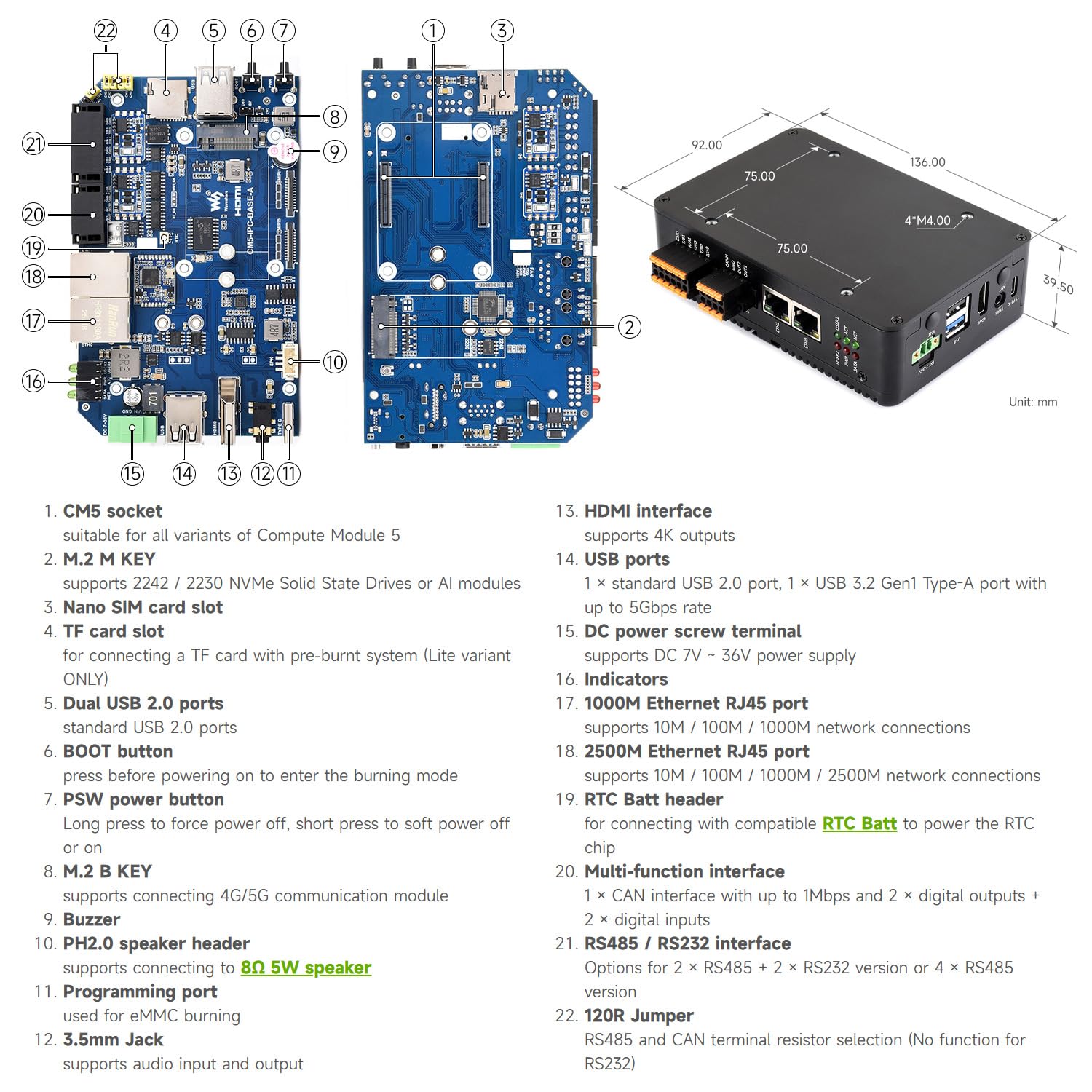

- IPCBOX-CM5-B, Dual Ethernet ports, onboard 2 x RS485 + 2 x RS232 interfaces
- Connecting With Compute Module 5, Standard CM5 Socket Suitable For Compute Module 5 Lite / EMMC Series Module
- 4G / 5G Module Compatibility, Compatible With Communication Modules With M.2 B KEY Interface
- Supports Connecting To M.2 NVMe Drive, Faster Reading/Writing Speed Compared To The TF Card Slot Of Raspberry Pi, Greatly Improving Reading/Writing Efficiency Of The System Or Files, Supports Booting Pi5 From NVME Solid State Drive
- Applicable M.2 Drive Sizes. NVMe Drive Slot Support
